Product By : OMAX


  • Model: M8211-A191BOIL-SC100; Total magnification: 40x-80x-100x-200x-400x-800x-1000x-2000x; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4x, 10x, 40x(Spring),100x(Spring,Oil)
  • Head: 30degrees;Inclined 360degrees;rotatable binocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, translation range 78mm x 40mm, dimension 110mm x 140mm
  • Focus: Coaxial coarse and fine focus knobs on both side, rack and pinion adjustment, with tension control and stop; Illumination: Transmitted 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and swing-out filter holder, rack and pinion adjustment
  • Extra darkfield condener: NA1.36-1.25; Extra Oil darkfield objective: Plan 100X/1.25-0.5 160/0.17, w/ built-in iris diaphragm, oil, spring loaded; 100 blank glass slides with 100 slide cover slips; Power supply: 110V/220V (switch at the bottom)
  • Dimension: 12inch x 8inch x 15inch (31cm x 20cm x 39cm); Net weight: 13 lbs 13.2 oz (5.82 kg); Shipping package: 20 lbs (9 kg)

2000X Compound Microscope+Oil Darkfield Condenser+Slides Covers Overview

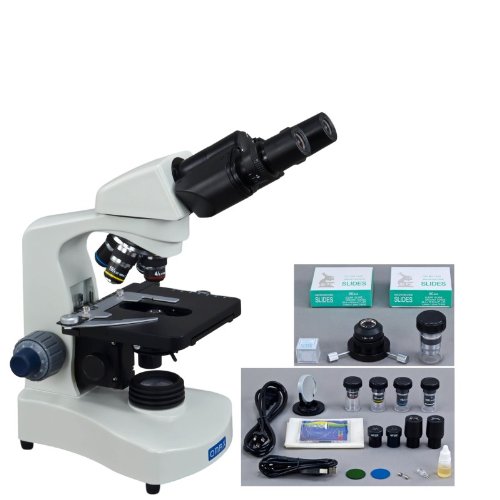

Packing List: Binocular microscope Siedentopf head;Microscope stand and base;4 objectives: 4x, 10x, 40x, and 100x;A pair of eyepieces: WF10X/18;A pair of eyepieces: WF20X;2 color filters: Green and Blue;A bottle of immersion oil;Power cord (US and Canada standard);Focus tension adjustment wrench;Dust cover;Extra fuse (in the fuse holder of the microscope);Oil darkfield condenser;100X oil objective lens w/ built-in iris diaphragm;100-piece blank glass slides;100-piece cover slipes
