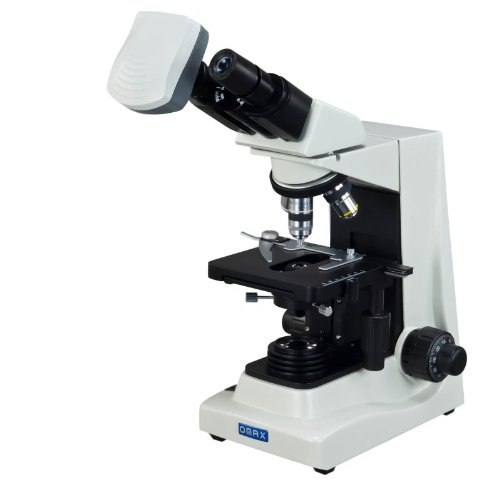

Cheap OMAX 5.0MP Digital Darkfield Siedentopf Compound Microscope 40X-1600X Reviews

Check Best Price Now!

Product By : OMAX

• Model: M824-A191BOIL-C50
• Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: DIN achromatic 4X (0.1), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil); Viewing head: binocular Siedentopf 30degrees;Inclined 360degrees;rotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece
• Digital camera: - true color 2592x1944 pixels (5.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows 2000/XP/Vista/Windows 7 32/64-bit - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
• Power supply: 110-115V, 50/60Hz (US and Canada) (220V version available, contact seller); Dimension: 14-1/8inch x 9-1/8inch x 16-1/2inch ( 36cm x 23cm x 42cm); Shipping package: 26 lbs (12 kg)
• Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm) translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying; Illumination: transmitted, 6V/20W halogen lamp, variable intensity; Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward moving lock protects objective and slides; Brightfield condenser: Abbe condenser NA1.25 with iris diaphragm and swing-in color filter holder, rack and pinion adjustment; Oil darkfield condenser: NA 1.36-1.25 plus plan 100X/1.25-0.5 160/0.17 objective (oil, spring) with built-in iris diaphragm; All metal mechanical components

OMAX 5.0MP Digital Darkfield Siedentopf Compound Microscope 40X-1600X Overview

Packing List: Binocular microscope Siedentopf viewing head;Microscope stand;4 DIN achromatic objectives: 4X, 10X, 40X, 100X;A pair of eyepieces WF10X/18;A pair of eyepieces P16X;2 color filters: green and blue;1 bottle of immersion oil;Dust cover;Power cord (US and Canada standard);Extra halogen bulb (6V/20W);Extra fuses;Tension wrench;Allen key;Oil darkfield condenser and 100X oil objective w/ built-in iris diaphragm;5.0MP digital camera;0.45X reduction lens;USB cable;1 CD (Camera driver and processing software)
