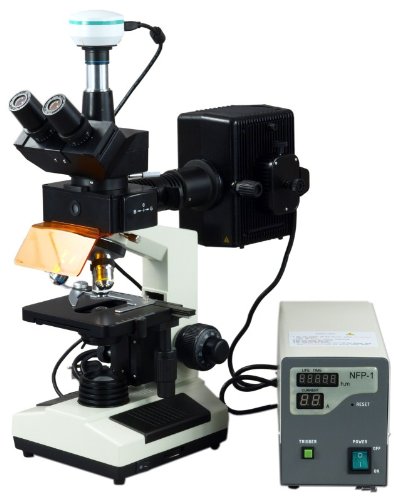

Best Price OMAX 40X-1600X Trinocular EPI-Fluorescence Compound Microscope with 2.0MP USB Camera Reviews

Check Best Price Now!

Product By : OMAX

• Dimension: 11inch x7-1/2inch x 17inch (28 cm x 19 cm x 43 cm); Net weight: 45 lbs
• Model: XM837FLRC20C; Magnifications: 40x, 64x, 100x, 160x, 400x, 640x, 1000x, 1600x; Microscope Head: - Trinocular viewing head: anti-mould, 45degrees;Inclined 360degrees; swiveling, compensation free - Sliding interpupillary adjustment, range 2-3/16inch - 3.0inch (55 mm-75 mm) - Nosepiece: revolving, quadruple - Adjustable diopter ring on both ocular tubes - Photo tube: Inner diameter 23.2mm, height adjustment range: 3/4inch (18 mm); Eyepieces - 2 pairs of eyepieces: WF10X (18 mm field of view) and P16X
• Objectives: high quality fluorescence objectives - FLUOR 4x (0.1 NA) - FLUOR 10x (0.25 NA), - FLUOR 40x (0.65 NA, Spring), - FLUOR 100x (1.25 NA, Spring,Oil); EPI-Fluorescent illumination: - Power supply: 100W, AC 230V/115V 50 Hz/ 60 Hz (interchangeable) with digital displays for Life Time (h.m) and Current (A) - 100 W HBO ultra Hi-pressure spherical Mercury bulb, center adjustable in lighthouse - Built-in condenser, position adjustable - Fluorescence blue and green filter cubes in a sliding assembly - Three-position sliding filter assembly: blue filter, green filter, and transmitted brightfield illumination - Epi-Fluorescence light path control: block/open - Blue exciting light spectrum range: 460 nm - 490 nm (often used in immune diagnosis, observation of cancer and blood cells with FITC, QM, Acridine Orange or Auramine Staining methods) - Green exciting light spectrum range: 510 nm - 550 nm (normally with TRITC, RB200 or Feulgen staining) - Protection barrier (suppression filter or front light baffle to resist the ultraviolet light - Fluorescence free immersion oil
• Transmitted illumination: - Power supply: 100V~240V 50/60Hz worldwide range (US and Canada plug) - 6V/20W halogen bulb - Intensity adjustable; Camera: - Resolution: true color 1600x1200 pixels - Specially designed for fluorescent light - Interface: USB 2.0 (480Mb/sec) - Pixel size: 2.8 um x 2.8 um - Image sensor: 1/3.2inch CMOS - SNR: 42.3 dB - Mounting port: 23.2 mm for standard compound microscopes; and standard C-mount - Software included. Please check the Specification (software) table for the functions - Computer operating systems: please check the following compatibility table
• Condenser: - NA1.25 Abbe condenser - Built-in iris aperture diaphragm - Built-in swing-out filter holder - Rack and pinion adjustment; Focusing: - Coaxial coarse and fine focus knobs on both sides - Tension adjustable - Focusing stroke: 1-3/16inch (30mm) - Division of fine focusing: 0.002 mm; Stages - Mechanical double layer stage - Stain resistance - Large size, can hold two slides - Dimensions: 5-1/2inch x 5-1/2inch (140 mm x 140 mm) - Traveling range (X-Y stroke): 3inch x 2inch (75mm x 50mm) - Stage upward moving lock protects objectives and slides

OMAX 40X-1600X Trinocular EPI-Fluorescence Compound Microscope with 2.0MP USB Camera Overview

Packing List: Trinocular compensation-free microscope head;A pair of WF10X and a pair of P16X;Power cord (US and Canada standard);Color filters;Extra halogen bulb (6V/20W);Extra fuses;One complete set of fluorescent kit, including: - Epi-Fluorescence illuminator; - 4 fluor objectives: 4x, 10x, 40x, 100x; - Power supply; - Power cord; - Mercury bulbs; - Protection barrier; - Fluorescence free oil; - Extra fuses;One complete set of camera kit, including: - 2.0MP camera - 0.45x reduction lens - CD (driver and software included) - USB cable
