Product By : OMAX

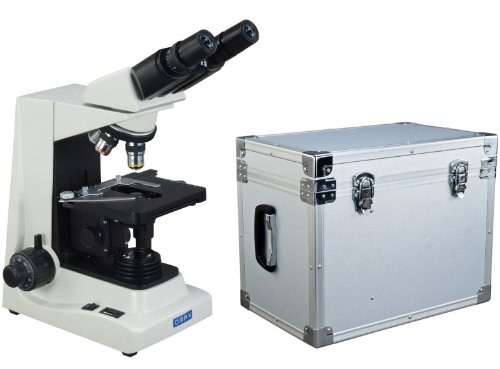

- Model: M824-A184A
- Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: DIN achromatic 4X (0.1), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil); Viewing head: binocular Siedentopf 30degrees;Inclined 360degrees;rotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece
- Power supply: 110-115V, 50/60Hz (US and Canada) (220V version available, contact seller)
- Carrying case: aluminum; Dimension of microscope: 14-1/8inch x 9-1/8inch x 16-1/2inch ( 36cm x 23cm x 42cm); Dimension of aluminum case: 17-1/2inch x 11-1/4inch x 14-1/8inch (44.5cm x 28cm x 36cm); Net weight of microscope: 18 lbs 8 oz (8.4 kg); Net weight of aluminum case: 9 lbs 4.5 oz (4.25 kg); Shipping package: 28 lbs (13 kg)
- Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm) translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying; Illumination: transmitted, 6V/20W halogen lamp, variable intensity; Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward moving lock protects objective and slides; Condenser: Abbe condenser NA1.25 with iris diaphragm and swing-in color filter holder, rack and pinion control for condenser; All metal mechanical components
