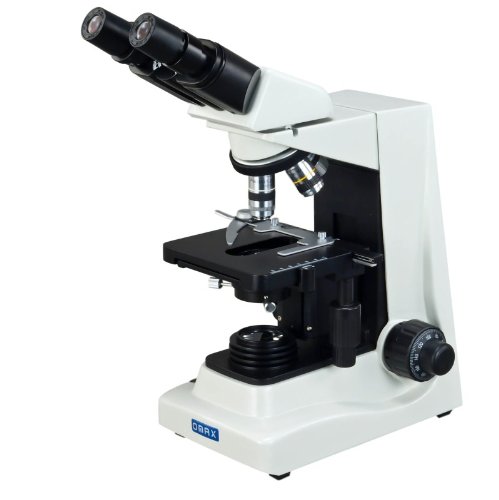

Best Price OMAX 40X-1600X PLAN Binocular Compound Microscope with Siedentopf Head and Extra Bright Darkfield Condensor Kit Reviews

Check Best Price Now!

Product By : OMAX

• Model: M824PLAN-A191BOIL; Total magnification: 40x-64x-100x-160x-400x-640x-1000x-1600x; Eyepieces: wide field WF10X/18 and P16X; Objectives: PLAN 4x, 10x, 40x(spring),100x(spring,oil); Viewing head: binocular Siedentopf 30degrees;Inclined 360degrees;rotatable
• Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm - 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece; Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm) translation range 3inch x 2inch (78mm x 52mm)
• A specially designed back slot on the microscope stand for easy hand holding and carrying; Illumination: transmitted, 6V/20W halogen lamp, variable intensity; Focus: coaxial coarse and fine focus knobs on both side with tension control
• Stage upward moving lock protects objective and slides; Brightfield condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment; Oil darkfield condenser: NA 1.36-1.25 plus plan 100X/1.25-0.5 160/0.17 objective (oil, spring) with built-in iris diaphragm
• All metal mechanical components; Power supply: 110-115V, 50/60Hz (US and Canada); Dimension: 14-1/8inch x 9-1/8inch x 16-1/2inch ( 36cm x 23cm x 42cm); Shipping package: 26 lbs (12 kg)

OMAX 40X-1600X PLAN Binocular Compound Microscope with Siedentopf Head and Extra Bright Darkfield Condensor Kit Overview

Packing List: Binocular microscope Siedentopf viewing head;Microscope stand;4 PLAN objectives: 4x, 10x, 40x, 100x;A pair of eyepieces WF10X/18;A pair of eyepieces P16X;2 color filters: green and blue;1 bottle of immersion oil;Dust cover;Power cord (US and Canada standard);Extra halogen bulb (6V/20W);Extra fuses;Tension wrench;Allen key;Oil darkfield condenser and 100X oil objective w/ built-in iris diaphragm
